    Introduce the Cross Series from CYKE, including three models of electric mountain bikes: Falcon A, Falcon S and Falcon X, each engineered to transport you effortlessly through any landscape.

    Each model in the Cross Series is equipped with a four-bar rear shock absorber system, optimizing pedaling efficiency and enhancing grip for a smooth, controlled ride. With uniquely designed ergonomics, the Falcon A, S, and X cater to diverse riding needs and preferences, ensuring comfort and performance on every adventure.

    3 products
    CYKE Cross Series eBikes CYKE Cross Series Electric Bikes

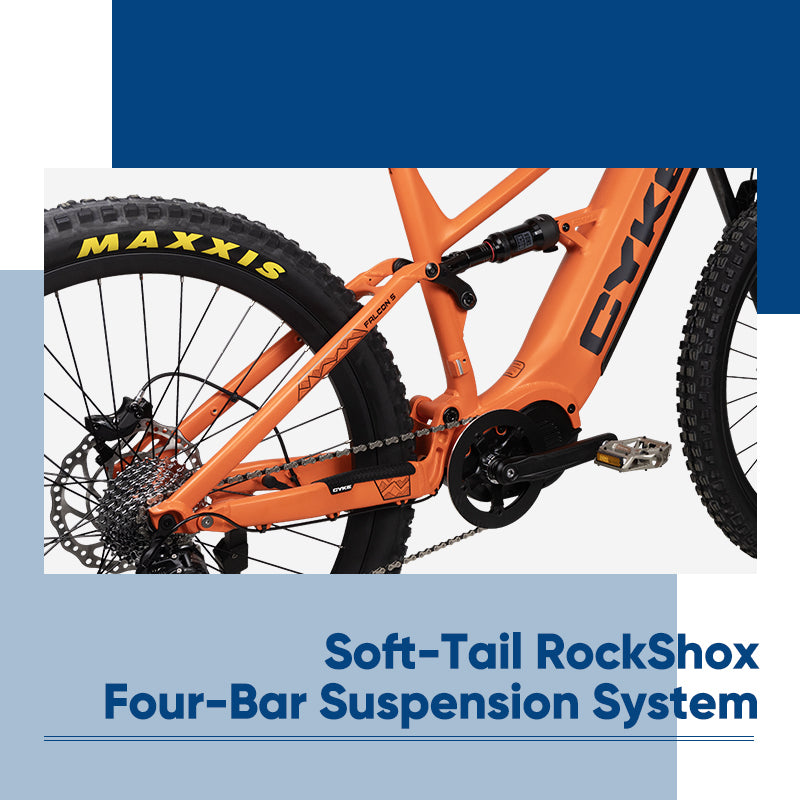

    Soft-Tail Four-Bar Suspension System

    The three eBike models of the Cross Series are all equipped with a soft-tail RockShox four-bar suspension system. This type of structure offers several advantages compared to other suspension designs.

    ✓ Improved Comfort and Control: The four-bar system helps in smoothing out bumps and vibrations from uneven terrain, which significantly maintains stability at high speeds powered by our BAFANG Mid-Drive Motor that can reach up to 1000W.

    ✓ Better Traction: The four-bar system improves traction by allowing the rear wheel to maintain consistent contact with the ground.

    ✓ Predictable Handling: With its predictable and stable handling characteristics, it provides a linear and controlled suspension movement, which makes it easier for riders to predict how the bike will behave under various conditions.

    ✓ Maintenance and Durability: The four-bar system is robust, requiring less maintenance and proving more durable for e-bikes.

    Soft-Tail Four-Link Suspension System

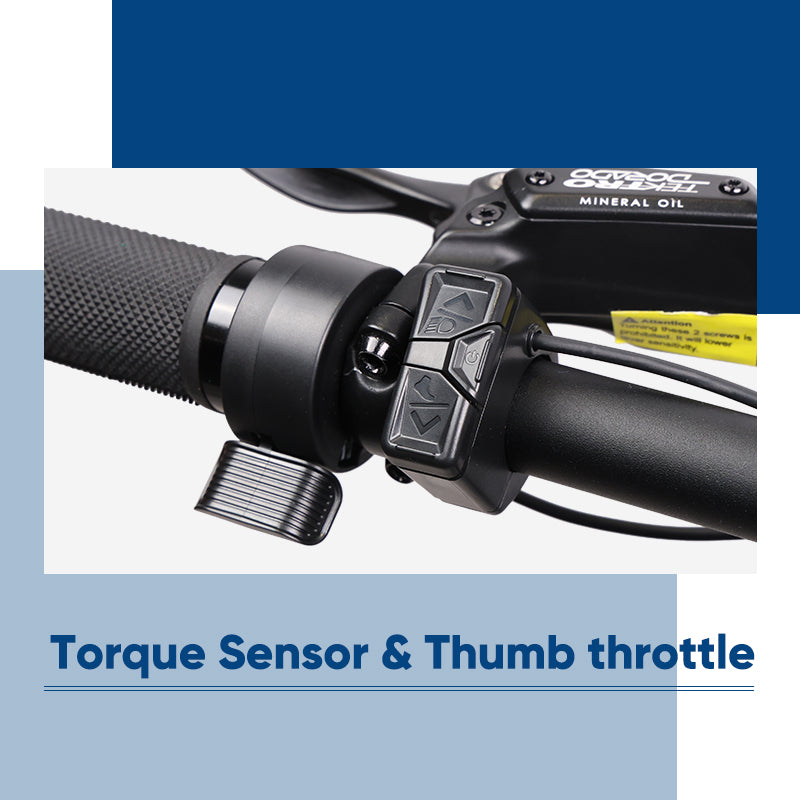

    Torque Sensor & Thumb Throttle

    Torque Sensor & Thumb Throttle

    The Cross Series is equipped with a Torque Sensor and a Thumb Throttle for a more natural cycling feel and instant power control.

    ✓ Torque Sensor: The torque sensor creates a seamless integration of human effort and motor assistance, where the motor's power output is closely aligned with the rider's input. Meanwhile, it ensures optimal use of the battery's energy. Riders will have a safer and more responsible cyclying journey when navigating varying terrains and conditions, while stay more effective work out.

    ✓ Thumb Throttle: Except for the benefits of instant acceleration without the need for pedaling and speed control with minimal effort, the thumb throttle provides extra accessibility for riders who may have physical limitations or prefer not to rely solely on pedal power.

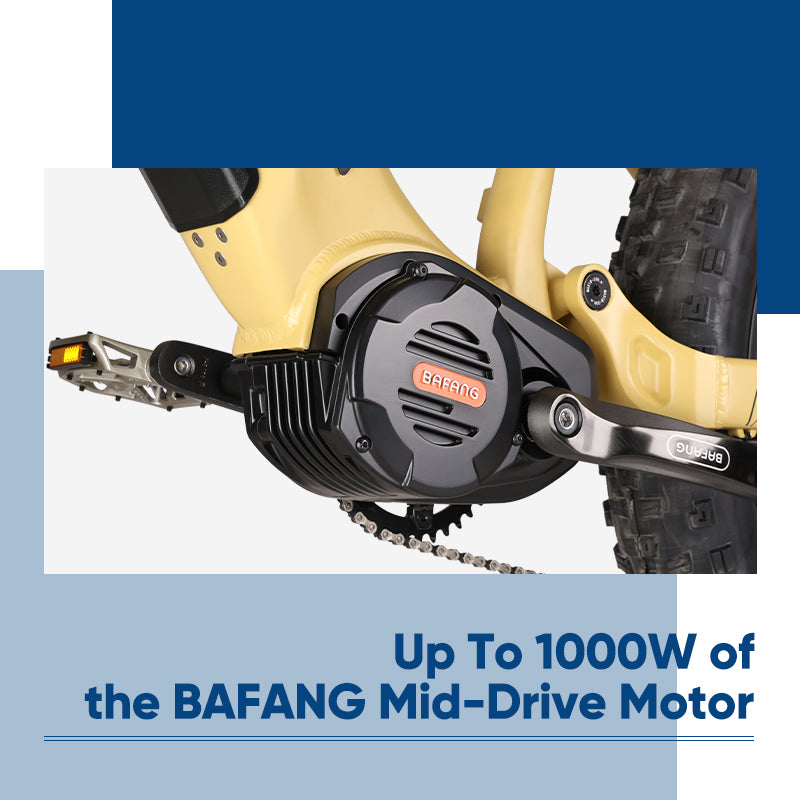

    Up to 1000W of the BAFANG Mid-Drive Motor

    Each eBike from the Cross Series is equipped with a BAFANG Mid-Drive Motor, which can reach up to 1100W and offer a powerful riding experience.

    ✓ Falcon A - 500W Rated Power, 750W Peak Power

    ✓ Falcon S - 1000W

    ✓ Falcon X - 1000W, 1100W Peak Power

    1000W BAFANG Mid-Drive Motor
    960Wh Lithium-ion Battery

    960Wh Battery, Up to 67-Mile Range

    With the BAFANG Lithium-ion battery with LG cells, the Cross Series can reach the maximum range of 67 miles per charge.

    ✓ Falcon A - BAFANG 48V/15Ah, 720Wh Lithium-ion battery with LG MT50 21700 13S3P cells

    ✓ Falcon S - BAFANG 48V/20Ah, 960Wh Lithium-ion battery with LG MT50 21700 13S3P cells

    ✓ Falcon X - BAFANG 48V/20Ah, 960Wh Lithium-ion battery with LG MT50 21700 13S3P cells

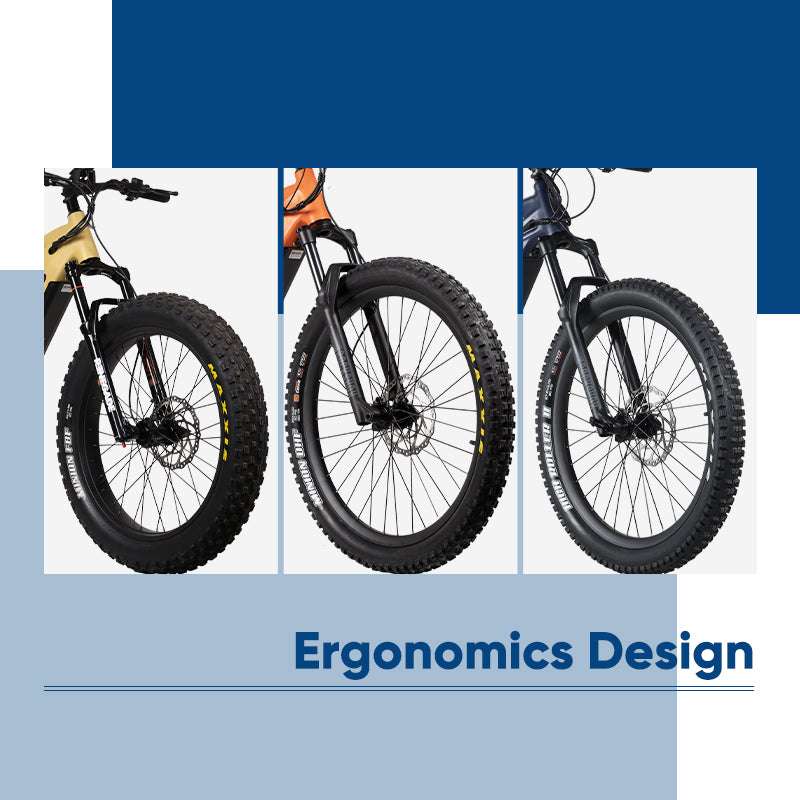

    Ergonomics Design

    We created three models to meet different riding scenarios.

    ✓ Falcon A - Flexible and Extreme Control. With 27.5x3" MTB tires, the Falcon A conquers all terrain and offers great power.

    ✓ Falcon S - Balance of Handling and Power. Equipped with 29x3" MTB tires, the Falcon S is also capable of various terrains and it provides a perfect balance of handling and power.

    ✓ Falcon X - All Terrain and Great Power. The 26x4.8" snow tires is perfect for all kinds of outdoor adventures, such as the beach and the snowfield.

    Ergonomics Design
    Top-of-the-line ebike components

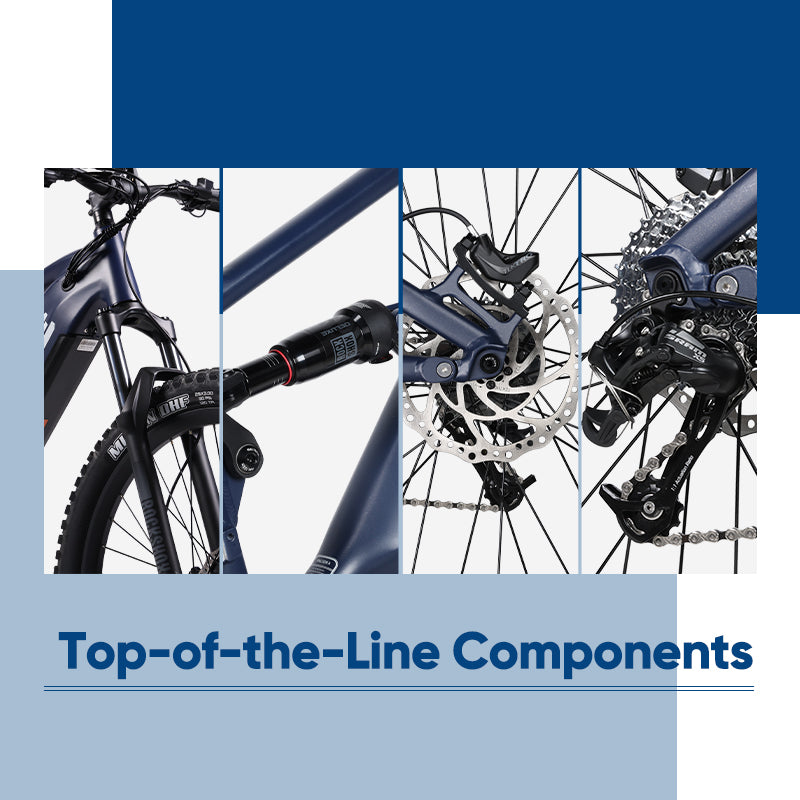

    Top-of-the-Line Components

    Every component of the Cross Series comes from a top-class brand, and works seamlessly to ensure a smooth and powerful ride.

    ✓ The 120mm Suspension Fork for a smooth ride over any terrain.

    ✓ The Responsive SRAM 9-Speed Gear System tackles all kinds of riding conditions.

    ✓ The Four-bar Rear Shock Absorber for a nearly straight wheel movement trajectory.

    ✓ The Hydraulic Disc Brakes for efficient and safe stopping power.

    Compare Each eBike: Specifications

    Model FALCON A FALCON S FALCON X
    Accessories
    Battery BAFANG 48V/15Ah,720Wh Lithium-ion battery with LG MT50 21700 13S3P cells BAFANG 48V/20Ah,960Wh Lithium-ion battery with LG MT50 21700 13S4P cells BAFANG 48V/20Ah,960Wh Lithium-ion battery with LG MT50 21700 13S4P cells
    Motor BAFANG MMG5300.500.C, 500W rated power, 750W peak power,48V,160±10RPM, 130 Nm of torque, based on CAN6.3 protocal BAFANG MM G510.1000.C,1000 watt peak power,48V,160±10RPM,160 Nm of torque, based on CAN6.3 protocal BAFANG MM G510.1000.C,1000W rated power, 1100W peak power,48V,160±10RPM, 160 Nm of torque, based on CAN6.3 protocal
    Display BAFANG DP C010.CB, LCD Display with Bluetooth,4-inch TFT color screen, IP66, based on CAN6.3 protocal BAFANG DP C010.CB, LCD Display with Bluetooth,4-inch TFT color screen, IP66, based on CAN6.3 protocal BAFANG DP C010.CB, LCD Display with Bluetooth,4-inch TFT color screen, IP66, based on CAN6.3 protocal
    Charger 54V3A Charger 54V3A Charger 54V3A Charger
    Sensor Torque Sensor Torque Sensor Torque Sensor
    Frameset
    Frame Aluminum alloy frame body adopting crafts of baking varnish, hydraulic forming, integrated welding and grinding Aluminum alloy frame body adopting crafts of baking varnish, hydraulic forming, integrated welding and grinding Aluminum alloy frame body adopting crafts of baking varnish, hydraulic forming, integrated welding and grinding
    Fork FS RCNS RL, 150mm travel, pneumatic bumper, hydraulic lockout, with sleeve lever shaft. FS RCNS RL, 150mm travel, pneumatic bumper, hydraulic lockout, with sleeve lever shaft. RST RENEGADE26, 80-120mm travel, 32mm alloy pillar, Air spring and oil damping, hydraulic lockout, with sleeve lever shaft, designed for fat tires.
    Shock RS-DELUXE SELECT-C1, 190mmx45mm, iDebonAir+ Air spring, Maxima Plush dynamic suspension lubricant. RS-DELUXE SELECT-C1, 190mmx45mm, iDebonAir+ Air spring, Maxima Plush dynamic suspension lubricant. RS-DELUXE SELECT-C1, 190mmx45mm, iDebonAir+ Air spring, Maxima Plush dynamic suspension lubricant.
    Wheels
    Wheel R33-1M Aluminum ring, 12G,36H,AV, double ring, black powder R33-1M Aluminum ring,for 29x3" tire, 12G,36H,AV, double ring, black powder J73 Aluminum ring,12G,36H,AV, double ring, black powder
    Tire MAXXIS M325, 27.5x3", snow tire MAXXIS, 29x3", MTB tire MAXXIS, 26x4.8", snow tire
    Hub front KT-M9CF, 12G36H Aluminum front disc brake, double bearing, ID15x150MM KT-TWXF, 12G36H Aluminum front disc brake, double bearing, ID15x150MM KT-M9CF, 12G36H Aluminum front disc brake, double bearing, ID15x150MM
    Drivetrain
    Shifter SRAM RD X5 9S,9 speed, long cage, 1:1 drive ratio SRAM RD X5 9S,9 speed, long cage, 1:1 drive ratio SRAM RD X5 9S,9 speed, long cage, 1:1 drive ratio
    Crank arm BAFANG CK B12.170.L/R,44T, 170mm length BAFANG CK B12.170.L/R,44T, 170mm length BAFANG CK B11.170.L/R,44T, 170mm length
    Chainring BAFANG MM G520(CW G522.1A), anti-drop gear, 34T BAFANG MM G510.1000(CW G510.1B), anti-drop gear, 40T BAFANG MM G520(CW G522.1A),anti-drop gear, 40T, without chain cover
    Chain KMC E10S, 10 speed KMC E10S, 10 speed KMC E10S, 10 speed
    Components
    Saddle VELO VL-3628AF, Boron steel 160mm width VELO VL-3628AF, Boron steel, 160mm width VELO VL-3628AF, Boron steel, 160mm width
    Grips VELO VLG-1909, plain gauge, Two-way, double ring VELO VLG-1909, plain gauge, Two-way, double ring VELO VLG-1909, plain gauge, Two-way, double ring
    Brakes TEKTRO HD-E730,4-piston hydraulic disc, with power cut-off sensor TEKTRO HD-E730,4-piston hydraulic disc, with power cut-off sensor TEKTRO HD-E730,4-piston hydraulic disc, with power cut-off sensor
    Brake rotor TEKTRO HD-E730, 3T, 203x2mm TEKTRO HD-E730, 3T, 203x2mm TEKTRO HD-E730, 3T, 203x2mm
    Weight
    Net Weight 55LBS/25KG 66LBS/30KG 82.7LBS/37.5KG
    Weight Limit 300 lbs 300 lbs 300 lbs

    FAQs

    Selecting between the three models of our Falcon series can be a bit overwhelming, so here's a breakdown to help you make the best choice based on your needs:

    Falcon A: The smallest and lightest of the trio, Model A offers the longest range and is exceptionally nimble, making it perfect for those who value agility and extended riding sessions. It's ideal for riders looking for ease of handling in a variety of environments.

    Falcon S: Striking a perfect balance, the Model S has a better range than Model X, more power than Model A, and is equipped with the largest diameter tires for higher speeds. This model is suited for those who seek a versatile ride that performs well in diverse conditions.

    Falcon X: As the largest model, X provides excellent stability and off-road performance. It's built for the adventurous rider who seeks greater power. It strikes a perfect balance between power and operation, meanwhile, it excels in tough terrains.

    No matter what type of rider you are or what you value the most for an off-road electric bike, you can find the right one that suits you perfectly here.

    Before diving into the specific benefits, it's important to note that our Falcon A, Falcon S, and Falcon X models are all equipped with BAFANG Mid-Drive Motors, renowned for their exceptional performance and reliability in the eBike industry.

    - Optimal Power Distribution: With up to 1000W rated and 1100W peak power, BAFANG mid-drive motors we use provide substantial torque and acceleration, ideal for challenging terrains and steep inclines. This power is efficiently used, allowing for greater range per charge.

    - Enhanced Bike Balance: The motor's central placement near the bike's bottom bracket ensures optimal weight distribution. This results in improved bike handling and stability, making it easier to maneuver and more comfortable to ride, especially on uneven surfaces.

    - Efficient Performance: Leveraging the bike's gearing system, our mid-drive motors adjust power output based on terrain and riding conditions. This not only enhances the motor’s efficiency but also conserves battery life, allowing for longer rides without the need for frequent recharges.

    - Ease of Maintenance: Unlike hub motors, mid-drive systems simplify maintenance tasks such as tire changes and repairs. The motor's location does not affect the wheel's integrity, which can reduce long-term maintenance costs.

    - Natural Riding Feel: Mid-drive motors keep the eBike’s center of gravity low, offering a ride that feels natural and balanced. This makes our eBikes an excellent choice for both seasoned cyclists and newcomers to electric bikes, ensuring a seamless transition and intuitive riding experience.

    These benefits make our electric bikes of Cross Series superior for anyone seeking a reliable, powerful, and enjoyable riding experience, whether for commuting, adventure, or recreational use.

    All the electric bikes in the Cross Series feature components from top-class brands, including the Rear Shock, Gear Shifter, Fork, and Brakes.

    - Rear Shock/Rear Suspension: ROCKSHOX RS-DELUXE SELECT-C1

    - Gear Shifter: SRAM RD X5 9S

    - Fork: RST RENEGADE26

    - Brake: TEKTRO HD-E730
