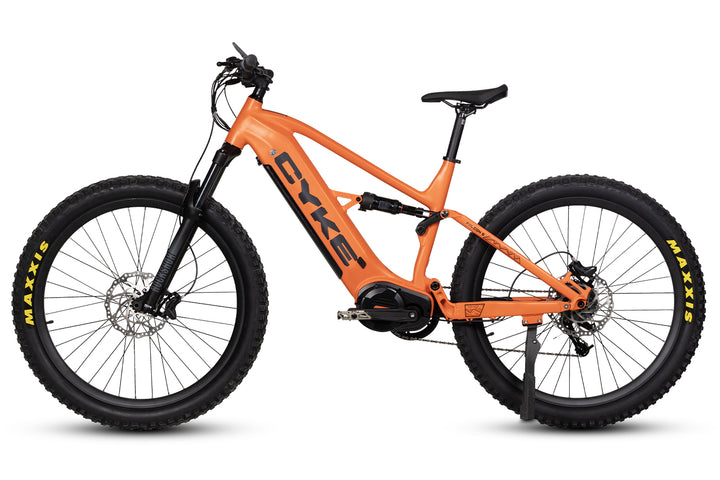

Name: Falcon S Full Suspension Ebike
Brand: CYKE
SKU: BCBA1BL
Price: 3399.0 USD
Availability: InStock

Falcon S full suspension e bikes for sale

Falcon S full suspension mountain ebikes

Falcon S fat tire electric bike 1000w mid drive

TÜV Safety Certified

Meet UL 2849 Standard

Secured for Life

In Lifetime Frame Warranty & 2-Year Parts Warranty

$3,399.00

Shipping calculated at checkout.

Free & Fast Shipping

In stock, ready to ship
Inventory on the way

Color — Dark Blue

Dark Blue

Flame Orange

Size

17"FRAME

19"FRAME

Compatible Accessories

~~$49.00~~
FREE
~~$399.00~~
$329.00
~~$40.00~~
$32.00
~~$439.00~~
$359.00
$299.00
~~$29.00~~
$23.20

Start your journey with the Falcon S on any terrain, with less efforts.

The soft-tail structure gives a more comfortable ride with better traction and improved control for various explorations.
The ROCKSHOX four-bar suspension system ensures a better shock absorption.
With the BAFANG Mid-Drive motor that can reach up to 1000W power and 160 Nm of torque, you can enjoy a powerful journey with the Falcon S.
Features 29x3"MTB fat tires that help you conquer different road conditions with less efforts.

TÜV Safety Certified

Meet UL 2849 Standard

Secured for Life

In Lifetime Frame Warranty & 2-Year Parts Warranty

Technical Specifications

E-bike System

Battery	48V/20Ah, 960Wh Lithium-ion battery with LG 21700 cells
Motor	BAFANG Mid-drive, 1000W rated power, 1100W peak power, 160 Nm of torque, based on CAN6.3 protocol
Range	65 Miles (75kg load, flat road, Cassette set to the smallest gear, and PAS1 level of pedal assist). The actual range varies depending on the weather, load, road conditions, etc.
Display	LCD display with Bluetooth, 4" TFT color screen, IP66
Charger	Input: 100-240V AC, 2.0A; Output: 54.6V DC, 3.0A.
Charging Time	Approx. 6-8 hours
Sensor	Torque sensor
Max Speed	28 MPH both in pedal-assist and throttle modes
Pedal Assist Modes	5 Levels

Frameset

Frame	Aluminum alloy, 17"/19" Size, 150mm travel
Fork	ROCKSHOX FS RCNS RL, 150mm travel, pneumatic bumper, hydraulic lockout
Shock	ROCKSHOX RS-DELUXE SELECT-C1, 190mmx45mm, iDebonAir+ air spring, Maxima Plush dynamic suspension lubricant

Wheels

Rim	Aluminum ring, 12G 36H AV, 634*41mm
Front Tire	Maxxis Minion DHF, 29x3.0"
Rear Tire	Maxxis Minion DHR II, 29x3.0"
Front Hub	Aluminum alloy, disc brake, 12G 36H, ID15*110mm
Rear Hub	Aluminum alloy, disc brake, 12G 36H, ID12*148mm
Spoke	Black stainless, 12G, 267mm

Drivetrain

Shifter	SRAM SL-X5, 9 speed, optimized for EXACT ACTUATION™
Rear Derailleur	SRAM RD-X5, 9 speed, EXACT ACTUATION™
Cassette	SRAM CS-PG-950, 9 speed
Crank arm	BAFANG 170mm length
Chainring	BAFANG MM G510, 40T
Chain	KMC E10S for e-bikes
Pedal	Aluminum alloy

Components

Saddle	VELO, boron steel, 160mm width
Seat Post	Aluminum alloy, Ø31.6*264mm
Stem	Bar bore: Ø31.8mm; Clamp I.D.: Ø28.6mm
Handlebar	Flat Bar, Aluminum Alloy Ø31.8mm, Width 780mm
Grips	VELO, trail grip
Brakes	TEKTRO HD-E730, 4-piston caliper, hydraulic disc, with power cut-off sensor
Brake rotor	TEKTRO HD-E730, 3T, 203x2mm
Kickstand	Side Kickstand

Weight

Weight Limit	300 lbs
Net Weight	66 lbs
Gross Weight	100.3 lbs

Size

Bike Size	82.84 x 30.9 x 45.79 in
Box Dimension	68.7 x 34.1 x 11 in

Download FALCON S Owner's Manual

[{"id":47775602278593,"title":"Dark Blue \/ 17\"FRAME","option1":"Dark Blue","option2":"17\"FRAME","option3":null,"sku":"BCBA1BL","requires_shipping":true,"taxable":true,"featured_image":{"id":43927084368065,"product_id":10207489360065,"position":9,"created_at":"2024-03-13T02:11:44-07:00","updated_at":"2025-01-22T00:27:13-08:00","alt":"Falcon S e mtb full suspension","width":999,"height":666,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/CYKE_FALCONS_DarkBlue_mainpics_240313_2.jpg?v=1737534433","variant_ids":[47775602278593,47784553087169]},"available":true,"name":"Falcon S Full Suspension Ebike - Dark Blue \/ 17\"FRAME","public_title":"Dark Blue \/ 17\"FRAME","options":["Dark Blue","17\"FRAME"],"price":339900,"weight":29937,"compare_at_price":339900,"inventory_management":"shopify","barcode":"805089687124","featured_media":{"alt":"Falcon S e mtb full suspension","id":36403102417089,"position":11,"preview_image":{"aspect_ratio":1.5,"height":666,"width":999,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/CYKE_FALCONS_DarkBlue_mainpics_240313_2.jpg?v=1737534433"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47784553087169,"title":"Dark Blue \/ 19\"FRAME","option1":"Dark Blue","option2":"19\"FRAME","option3":null,"sku":"BCBB1BL","requires_shipping":true,"taxable":true,"featured_image":{"id":43927084368065,"product_id":10207489360065,"position":9,"created_at":"2024-03-13T02:11:44-07:00","updated_at":"2025-01-22T00:27:13-08:00","alt":"Falcon S e mtb full suspension","width":999,"height":666,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/CYKE_FALCONS_DarkBlue_mainpics_240313_2.jpg?v=1737534433","variant_ids":[47775602278593,47784553087169]},"available":true,"name":"Falcon S Full Suspension Ebike - Dark Blue \/ 19\"FRAME","public_title":"Dark Blue \/ 19\"FRAME","options":["Dark Blue","19\"FRAME"],"price":339900,"weight":29937,"compare_at_price":339900,"inventory_management":"shopify","barcode":"805089687155","featured_media":{"alt":"Falcon S e mtb full suspension","id":36403102417089,"position":11,"preview_image":{"aspect_ratio":1.5,"height":666,"width":999,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/CYKE_FALCONS_DarkBlue_mainpics_240313_2.jpg?v=1737534433"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47775602344129,"title":"Flame Orange \/ 17\"FRAME","option1":"Flame Orange","option2":"17\"FRAME","option3":null,"sku":"BCBA1OR","requires_shipping":true,"taxable":true,"featured_image":{"id":46654046142657,"product_id":10207489360065,"position":1,"created_at":"2025-01-21T23:01:30-08:00","updated_at":"2025-01-21T23:01:48-08:00","alt":"Falcon S Full Suspension eMTB","width":1500,"height":1000,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/CYKE_FALCON_S_Flame_Orange_main_pics_250122_1.jpg?v=1737529308","variant_ids":[47775602344129,47784553119937]},"available":false,"name":"Falcon S Full Suspension Ebike - Flame Orange \/ 17\"FRAME","public_title":"Flame Orange \/ 17\"FRAME","options":["Flame Orange","17\"FRAME"],"price":339900,"weight":29937,"compare_at_price":339900,"inventory_management":"shopify","barcode":"805089687131","featured_media":{"alt":"Falcon S Full Suspension eMTB","id":38663349698753,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/CYKE_FALCON_S_Flame_Orange_main_pics_250122_1.jpg?v=1737529308"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47784553119937,"title":"Flame Orange \/ 19\"FRAME","option1":"Flame Orange","option2":"19\"FRAME","option3":null,"sku":"BCBB1OR","requires_shipping":true,"taxable":true,"featured_image":{"id":46654046142657,"product_id":10207489360065,"position":1,"created_at":"2025-01-21T23:01:30-08:00","updated_at":"2025-01-21T23:01:48-08:00","alt":"Falcon S Full Suspension eMTB","width":1500,"height":1000,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/CYKE_FALCON_S_Flame_Orange_main_pics_250122_1.jpg?v=1737529308","variant_ids":[47775602344129,47784553119937]},"available":false,"name":"Falcon S Full Suspension Ebike - Flame Orange \/ 19\"FRAME","public_title":"Flame Orange \/ 19\"FRAME","options":["Flame Orange","19\"FRAME"],"price":339900,"weight":29937,"compare_at_price":339900,"inventory_management":"shopify","barcode":"805089687148","featured_media":{"alt":"Falcon S Full Suspension eMTB","id":38663349698753,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/CYKE_FALCON_S_Flame_Orange_main_pics_250122_1.jpg?v=1737529308"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

{"id":47775602278593,"title":"Dark Blue \/ 17\"FRAME","option1":"Dark Blue","option2":"17\"FRAME","option3":null,"sku":"BCBA1BL","requires_shipping":true,"taxable":true,"featured_image":{"id":43927084368065,"product_id":10207489360065,"position":9,"created_at":"2024-03-13T02:11:44-07:00","updated_at":"2025-01-22T00:27:13-08:00","alt":"Falcon S e mtb full suspension","width":999,"height":666,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/CYKE_FALCONS_DarkBlue_mainpics_240313_2.jpg?v=1737534433","variant_ids":[47775602278593,47784553087169]},"available":true,"name":"Falcon S Full Suspension Ebike - Dark Blue \/ 17\"FRAME","public_title":"Dark Blue \/ 17\"FRAME","options":["Dark Blue","17\"FRAME"],"price":339900,"weight":29937,"compare_at_price":339900,"inventory_management":"shopify","barcode":"805089687124","featured_media":{"alt":"Falcon S e mtb full suspension","id":36403102417089,"position":11,"preview_image":{"aspect_ratio":1.5,"height":666,"width":999,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/CYKE_FALCONS_DarkBlue_mainpics_240313_2.jpg?v=1737534433"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

RockShox Four-Bar Suspension

BAFANG 1000W Mid-Drive Motor

28MPH Top Speed

160Nm of Torque

Limited Lifetime Warranty

Full Suspension System

The Falcon S is equipped with a 150mm travel RockShox front fork and a RockShox air spring rear shock, providing superior comfort and improved handling. This full suspension system offers better protection for components and excels in efficiency on rough terrain, making it perfect for a variety of riding conditions and challenging trails.

1000W BAFANG Mid-Drive Motor

Designed for ultimate thrills and efficiency, this eMTB will take your rides to a whole new level. Peaking at 28mph, its powerful 1000W BAFANG Motor will help you conquer any terrain with ease and feel the rush of the wind as you explore the great outdoors.

Made for All-Terrain

960Wh Battery with LG Cells

The Falcon S is powered by a 48V/20Ah, 960Wh lithium-ion battery featuring LG 21700 cells, providing a range of up to 65 miles on a single charge. The battery is further enhanced by a customized battery management system that optimizes discharge current for better performance.

TEKTRO Brake System

The Falcon S features TEKTRO HD-E730 hydraulic disc brakes with a 4-piston caliper and 3T 203x2mm rotors. This system provides reliable, powerful stopping performance and includes a power cut-off sensor for added safety, ensuring precise control on steep and rugged terrain.

Torque Sensor

Equipped with a highly responsive torque sensor, the Falcon S adjusts motor output based on your pedaling force. This delivers smooth and natural acceleration, optimizing efficiency and control, making it perfect for conquering tough trails.

SRAM 9-Speed Gear System

The SRAM 9-speed gear system includes an SL-X5 shifter, RD-X5 derailleur, and CS-PG-950 cassette. With EXACT ACTUATION™ technology, it ensures precise and effortless shifting across terrains, offering smooth transitions for an efficient, enjoyable ride.

Durable Design Frame

The Falcon S features an aluminum alloy frame crafted with Italian flat welding, hydraulic forming, and baking varnish. Integrated welding and grinding processes enhance durability, blending exceptional strength with sleek aesthetics for a long-lasting, stylish design.

Shock-Absorbing MTB Tires

Ride confidently with 29x3" MTB tires that provide superior shock absorption and stability on uneven surfaces. These tires offer excellent grip and comfort, making them ideal for tackling rough terrains with ease and style.

CYKE APP

Featuring a BAFANG display with an IP66-rated LCD screen and Bluetooth connectivity, the Falcon S integrates with the CYKE App. Monitor ride stats, customize settings, and personalize your experience effortlessly for smarter, more efficient cycling adventures.

Specifications

E-bike System

Battery	48V/20Ah, 960Wh Lithium-ion battery with LG 21700 cells
Motor	BAFANG Mid-drive, 1000W rated power, 1100W peak power, 160 Nm of torque, based on CAN6.3 protocol
Range	65 Miles (75kg load, flat road, Cassette set to the smallest gear, and PAS1 level of pedal assist). The actual range varies depending on the weather, load, road conditions, etc.
Display	LCD display with Bluetooth, 4" TFT color screen, IP66
Charger	Input: 100-240V AC, 2.0A; Output: 54.6V DC, 3.0A.
Charging Time	Approx. 6-8 hours
Sensor	Torque sensor
Max Speed	28 MPH both in pedal-assist and throttle modes
Pedal Assist Modes	5 Levels

Frameset

Frame	Aluminum alloy, 17"/19" Size, 150mm rear travel
Fork	ROCKSHOX FS RCNS RL, 150mm travel, pneumatic bumper, hydraulic lockout
Shock	ROCKSHOX RS-DELUXE SELECT-C1, 190mmx45mm, iDebonAir+ air spring, Maxima Plush dynamic suspension lubricant

Wheels

Rim	Aluminum ring, 12G 36H AV, 634*41mm
Front Tire	Maxxis Minion DHF, 29x3.0"
Rear Tire	Maxxis Minion DHR II, 29x3.0"
Front Hub	Aluminum alloy, disc brake, 12G 36H, ID15*110mm
Rear Hub	Aluminum alloy, disc brake, 12G 36H, ID12*148mm
Spoke	Black stainless, 12G, 267mm

Drivetrain

Shifter	SRAM SL-X5, 9 speed, optimized for EXACT ACTUATION™
Rear Derailleur	SRAM RD-X5, 9 speed, EXACT ACTUATION™
Cassette	SRAM CS-PG-950, 9 speed
Crank arm	BAFANG 170mm length
Chainring	BAFANG MM G510, 40T
Chain	KMC E10S for e-bikes
Pedal	Aluminum alloy

Components

Saddle	VELO, boron steel, 160mm width
Seat Post	Aluminum alloy, Ø31.6*264mm
Stem	Bar bore: Ø31.8mm; Clamp I.D.: Ø28.6mm
Handlebar	Flat Bar, Aluminum Alloy Ø31.8mm, Width 780mm
Grips	VELO, trail grip
Brakes	TEKTRO HD-E730, 4-piston caliper, hydraulic disc, with power cut-off sensor
Brake rotor	TEKTRO HD-E730, 3T, 203x2mm
Kickstand	Side Kickstand
