Name: Falcon X Full Suspension Ebike
Brand: CYKE
SKU: BCAA1BL
Price: 3399.0 USD
Availability: InStock

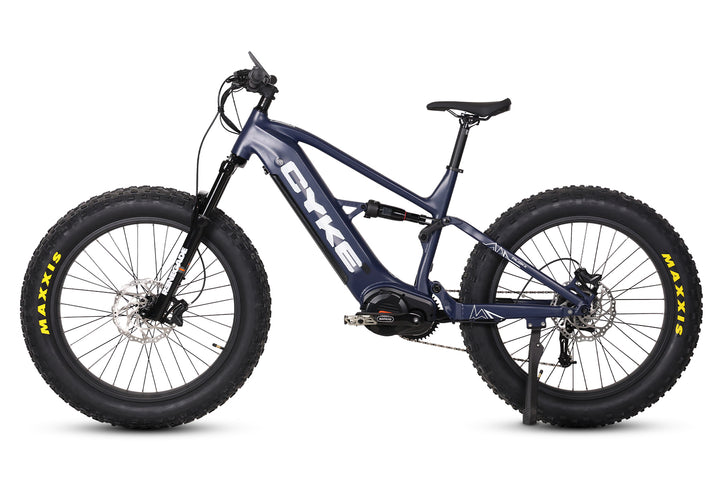

Falcon X full suspension electric bicycle

Falcon X full suspension ebike mountain bike

Falcon X full suspension electric mountain bike with throttle

Falcon X best electric full suspension mountain bike

CYKE Falcon X best ebike full suspension

Falcon X electric full suspension fat bike

TÜV Safety Certified

Meet UL 2849 Standard

Secured for Life

In Lifetime Frame Warranty & 2-Year Parts Warranty

$3,399.00

Shipping calculated at checkout.

Free & Fast Shipping

In stock, ready to ship
Inventory on the way

Color — Dark Blue

Dark Blue

Desert Yellow

Size

17"FRAME

19"FRAME

Compatible Accessories

~~$49.00~~
FREE
~~$399.00~~
$329.00
~~$40.00~~
$32.00
~~$439.00~~
$359.00
~~$29.00~~
$23.20
$299.00

Introduce Falcon X, an off-road eBike for All-Terrain exploration with great power.

The soft-tail structure gives a more comfortable ride with better traction and improved control for various explorations.
The ROCKSHOX four-bar suspension system ensures a better shock absorption.
The BAFANG Mid-Drive motor that can reach up to 1100W power and 160 Nm of torque ensures a effortless, comfortable and powerful riding experience.
Equipped with the MAXXIS 26x4.8" Snow Tire, which can help you easily handle riding in a variety of different road conditions, including snow.

TÜV Safety Certified

Meet UL 2849 Standard

Secured for Life

In Lifetime Frame Warranty & 2-Year Parts Warranty

Technical Specifications

E-bike System

Battery	48V/20Ah, 960Wh Lithium-ion battery with LG 21700 cells
Motor	BAFANG Mid-drive, 1000W rated power, 1100W peak power, 160 Nm of torque, based on CAN6.3 protocol
Range	65 Miles (75kg load, flat road, Cassette set to the smallest gear, and PAS1 level of pedal assist). The actual range varies depending on the weather, load, road conditions, etc.
Display	LCD display with Bluetooth, 4" TFT color screen, IP66
Charger	Input: 100-240V AC, 2.0A; Output: 54.6V DC, 3.0A.
Charging Time	Approx. 8-10 hours
Sensor	Torque sensor
Max Speed	28 MPH both in pedal-assist and throttle modes
Pedal Assist Modes	5 Levels

Frameset

Frame	Aluminum alloy, 17"/19"Size, 150mm travel
Fork	RST RENEGADE 26, 80-120mm travel, 32mm alloy pillar, air spring and oil damping, hydraulic lockout
Shock	ROCKSHOX RS-DELUXE SELECT-C1, 190mmx45mm, iDebonAir+ air spring, Maxima Plush dynamic suspension lubricant

Wheels

Rim	Aluminum ring, 12G 36H AV, 580*98mm
Front Tire	Maxxis Minion FBF, 26x4.8", Snow tires
Rear Tire	Maxxis Minion FBR, 26x4.8", Snow tires
Front Hub	Aluminum alloy, disc brake, 12G 36H, ID15x150mm
Rear Hub	Aluminum alloy, disc brake, 12G 36H, ID12*197mm
Spoke	Black stainless, 12G, 258mm

Drivetrain

Shifter	SRAM SL-X5, 9 speed, optimized for EXACT ACTUATION™
Rear Derailleur	SRAM RD-X5, 9 speed, EXACT ACTUATION™
Cassette	SRAM CS-PG-950, 9 speed
Crank arm	BAFANG 170mm length
Chainring	BAFANG MM G520, 40T
Chain	KMC E10S for e-bikes
Pedal	Aluminum alloy

Components

Saddle	VELO, boron steel, 160mm width
Seat Post	Aluminum alloy, Ø31.6*264mm
Stem	Bar bore: Ø31.8mm; Clamp I.D.: Ø28.6mm
Handlebar	Flat Bar, Aluminum Alloy Ø31.8mm, Width 780mm
Grips	VELO, trail grip
Brakes	TEKTRO HD-E730, 4-piston caliper, hydraulic disc, with power cut-off sensor
Brake rotor	TEKTRO HD-E730, 3T, 203x2mm
Kickstand	Side Kickstand

Weight

Weight Limit	300 lbs
Net Weight	82.7 lbs
Gross Weight	105.2 lbs

Size

Bike Size	82.84 x 30.9 x 45.79 in
Box Dimension	69.7 x 33.5 x 11.6 in

Download FALCON X Owner's Manual

[{"id":47774146822337,"title":"Dark Blue \/ 17\"FRAME","option1":"Dark Blue","option2":"17\"FRAME","option3":null,"sku":"BCAA1BL","requires_shipping":true,"taxable":true,"featured_image":{"id":46654050402497,"product_id":10206066802881,"position":1,"created_at":"2025-01-21T23:02:47-08:00","updated_at":"2025-01-21T23:03:04-08:00","alt":"Falcon X Full Suspension eBike","width":1500,"height":1000,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/CYKE_FALCON_X_Dark_Blue_main_pics_250122_1.jpg?v=1737529384","variant_ids":[47774146822337,47784554856641]},"available":true,"name":"Falcon X Full Suspension Ebike - Dark Blue \/ 17\"FRAME","public_title":"Dark Blue \/ 17\"FRAME","options":["Dark Blue","17\"FRAME"],"price":339900,"weight":37512,"compare_at_price":339900,"inventory_management":"shopify","barcode":"805089687087","featured_media":{"alt":"Falcon X Full Suspension eBike","id":38663352811713,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/CYKE_FALCON_X_Dark_Blue_main_pics_250122_1.jpg?v=1737529384"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47784554856641,"title":"Dark Blue \/ 19\"FRAME","option1":"Dark Blue","option2":"19\"FRAME","option3":null,"sku":"BCAB1BL","requires_shipping":true,"taxable":true,"featured_image":{"id":46654050402497,"product_id":10206066802881,"position":1,"created_at":"2025-01-21T23:02:47-08:00","updated_at":"2025-01-21T23:03:04-08:00","alt":"Falcon X Full Suspension eBike","width":1500,"height":1000,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/CYKE_FALCON_X_Dark_Blue_main_pics_250122_1.jpg?v=1737529384","variant_ids":[47774146822337,47784554856641]},"available":true,"name":"Falcon X Full Suspension Ebike - Dark Blue \/ 19\"FRAME","public_title":"Dark Blue \/ 19\"FRAME","options":["Dark Blue","19\"FRAME"],"price":339900,"weight":37512,"compare_at_price":339900,"inventory_management":"shopify","barcode":"805089687117","featured_media":{"alt":"Falcon X Full Suspension eBike","id":38663352811713,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/CYKE_FALCON_X_Dark_Blue_main_pics_250122_1.jpg?v=1737529384"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47774146887873,"title":"Desert Yellow \/ 17\"FRAME","option1":"Desert Yellow","option2":"17\"FRAME","option3":null,"sku":"BCAA1YL","requires_shipping":true,"taxable":true,"featured_image":{"id":46248478441665,"product_id":10206066802881,"position":7,"created_at":"2024-11-24T22:33:45-08:00","updated_at":"2025-01-21T23:03:04-08:00","alt":"Falcon X e MTB full suspension","width":1500,"height":1000,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/Falcon-X-e-mtb-full-suspension.jpg?v=1737529384","variant_ids":[47774146887873,47784554889409]},"available":true,"name":"Falcon X Full Suspension Ebike - Desert Yellow \/ 17\"FRAME","public_title":"Desert Yellow \/ 17\"FRAME","options":["Desert Yellow","17\"FRAME"],"price":339900,"weight":37512,"compare_at_price":339900,"inventory_management":"shopify","barcode":"805089687094","featured_media":{"alt":"Falcon X e MTB full suspension","id":38388454260929,"position":7,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/Falcon-X-e-mtb-full-suspension.jpg?v=1737529384"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47784554889409,"title":"Desert Yellow \/ 19\"FRAME","option1":"Desert Yellow","option2":"19\"FRAME","option3":null,"sku":"BCAB1YL","requires_shipping":true,"taxable":true,"featured_image":{"id":46248478441665,"product_id":10206066802881,"position":7,"created_at":"2024-11-24T22:33:45-08:00","updated_at":"2025-01-21T23:03:04-08:00","alt":"Falcon X e MTB full suspension","width":1500,"height":1000,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/Falcon-X-e-mtb-full-suspension.jpg?v=1737529384","variant_ids":[47774146887873,47784554889409]},"available":true,"name":"Falcon X Full Suspension Ebike - Desert Yellow \/ 19\"FRAME","public_title":"Desert Yellow \/ 19\"FRAME","options":["Desert Yellow","19\"FRAME"],"price":339900,"weight":37512,"compare_at_price":339900,"inventory_management":"shopify","barcode":"805089687100","featured_media":{"alt":"Falcon X e MTB full suspension","id":38388454260929,"position":7,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/Falcon-X-e-mtb-full-suspension.jpg?v=1737529384"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

{"id":47774146822337,"title":"Dark Blue \/ 17\"FRAME","option1":"Dark Blue","option2":"17\"FRAME","option3":null,"sku":"BCAA1BL","requires_shipping":true,"taxable":true,"featured_image":{"id":46654050402497,"product_id":10206066802881,"position":1,"created_at":"2025-01-21T23:02:47-08:00","updated_at":"2025-01-21T23:03:04-08:00","alt":"Falcon X Full Suspension eBike","width":1500,"height":1000,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/CYKE_FALCON_X_Dark_Blue_main_pics_250122_1.jpg?v=1737529384","variant_ids":[47774146822337,47784554856641]},"available":true,"name":"Falcon X Full Suspension Ebike - Dark Blue \/ 17\"FRAME","public_title":"Dark Blue \/ 17\"FRAME","options":["Dark Blue","17\"FRAME"],"price":339900,"weight":37512,"compare_at_price":339900,"inventory_management":"shopify","barcode":"805089687087","featured_media":{"alt":"Falcon X Full Suspension eBike","id":38663352811713,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/cykebikes.com\/cdn\/shop\/files\/CYKE_FALCON_X_Dark_Blue_main_pics_250122_1.jpg?v=1737529384"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

RockShox Four-Bar Suspension

BAFANG 1000W Mid-Drive Motor

28MPH Top Speed

160Nm of Torque

Limited Lifetime Warranty

Full Suspension System

The Falcon X features a full suspension setup with an RST Renegade front fork offering 80–120mm of travel, and a RockShox RS-DELUXE SELECT-C1 rear shock equipped with a 190mm x 45mm iDebonAir+ air spring and Maxima Plush dynamic suspension lubricant. This system provides superior shock absorption, enhancing comfort, control, and stability over rough trails and technical descents.

1000W BAFANG Mid-Drive Motor

Powered by a 1000W BAFANG mid-drive motor, a peak output of 1100W can be provided for an exhilarating ride! Reach speeds of up to 28mph effortlessly with this high-performance motor, giving you the ultimate thrill on every journey.

960Wh Battery with LG Cells

The 48V/20Ah BAFANG battery with LG cells delivers a range of up to 65 miles per charge, backed by advanced BMS technology. This reliable battery ensures consistent power and long-lasting endurance for all your rides, so you can explore further with confidence.

TEKTRO Brake System

Equipped with TEKTRO HD-E730 hydraulic disc brakes, the Falcon X ensures powerful stopping performance with a 4-piston caliper and 203x2mm rotors. This system provides precise, reliable braking and is ideal for navigating slippery, snowy terrains, maintaining maximum control and safety in challenging conditions.

Torque Sensor

The Falcon X’s torque sensor adjusts motor output based on your pedaling force, ensuring smooth and natural acceleration. This provides a seamless riding experience, with enhanced control and efficiency, ideal for tackling rugged trails and varying terrain.

Maxxis Minion FBF/FBR Tires

Comes with Maxxis Minion FBF (front) and FBR (rear) tires, designed for exceptional cornering and low rolling resistance. The FBF offers excellent traction, while the FBR maximizes grip and minimizes resistance, ensuring superior control on technical trails and rough terrains. Perfect for riders seeking precision and confidence in challenging conditions.

SRAM 9-Speed Gear System

The Falcon X is equipped with a SRAM 9-speed gear system, featuring an SL-X5 shifter and RD-X5 derailleur for precise and smooth shifting. The SRAM CS-PG-950 cassette ensures reliable performance, providing seamless gear transitions for an efficient, comfortable ride on diverse terrains.

Durable and Sleek

The Falcon X boasts an Italian flat-welded aluminum alloy frame, incorporating advanced techniques such as baking varnish, hydraulic forming, and integrated welding. This results in a frame that offers incredible durability, strength, and a sleek, modern aesthetic that’s both stylish and functional.

CYKE APP

With a BAFANG display, the Falcon X connects seamlessly to the CYKE app via Bluetooth, offering real-time data, customizable settings, and 5 levels of backlight adjustment on its IP66-rated LCD screen. This integration enhances your riding experience, providing smart, efficient control for every adventure.

Specifications

E-bike System

Battery	48V/20Ah, 960Wh Lithium-ion battery with LG 21700 cells
Motor	BAFANG Mid-drive, 1000W rated power, 1100W peak power, 160 Nm of torque, based on CAN6.3 protocol
Range	65 Miles (75kg load, flat road, Cassette set to the smallest gear, and PAS1 level of pedal assist). The actual range varies depending on the weather, load, road conditions, etc.
Display	LCD display with Bluetooth, 4" TFT color screen, IP66
Charger	Input: 100-240V AC, 2.0A; Output: 54.6V DC, 3.0A.
Charging Time	Approx. 8-10 hours
Sensor	Torque sensor
Max Speed	28 MPH both in pedal-assist and throttle modes
Pedal Assist Modes	5 Levels

Frameset

Frame	Aluminum alloy, 17"/19"Size, 150mm travel
Fork	RST RENEGADE 26, 80-120mm travel, 32mm alloy pillar, air spring and oil damping, hydraulic lockout
Shock	ROCKSHOX RS-DELUXE SELECT-C1, 190mmx45mm, iDebonAir+ air spring, Maxima Plush dynamic suspension lubricant

Wheels

Rim	Aluminum ring, 12G 36H AV, 580*98mm
Front Tire	Maxxis Minion FBF, 26x4.8", Snow tires
Rear Tire	Maxxis Minion FBR, 26x4.8", Snow tires
Front Hub	Aluminum alloy, disc brake, 12G 36H, ID15x150mm
Rear Hub	Aluminum alloy, disc brake, 12G 36H, ID12*197mm
Spoke	Black stainless, 12G, 258mm

Drivetrain

Shifter	SRAM SL-X5, 9 speed, optimized for EXACT ACTUATION™
Rear Derailleur	SRAM RD-X5, 9 speed, EXACT ACTUATION™
Cassette	SRAM CS-PG-950, 9 speed
Crank arm	BAFANG 170mm length
Chainring	BAFANG MM G520, 40T
Chain	KMC E10S for e-bikes
Pedal	Aluminum alloy

Components

Saddle	VELO, boron steel, 160mm width
Seat Post	Aluminum alloy, Ø31.6*264mm
Stem	Bar bore: Ø31.8mm; Clamp I.D.: Ø28.6mm
Handlebar	Flat Bar, Aluminum Alloy Ø31.8mm, Width 780mm
Grips	VELO, trail grip
Brakes	TEKTRO HD-E730, 4-piston caliper, hydraulic disc, with power cut-off sensor
Brake rotor	TEKTRO HD-E730, 3T, 203x2mm
Kickstand	Side Kickstand
